Product Introduction

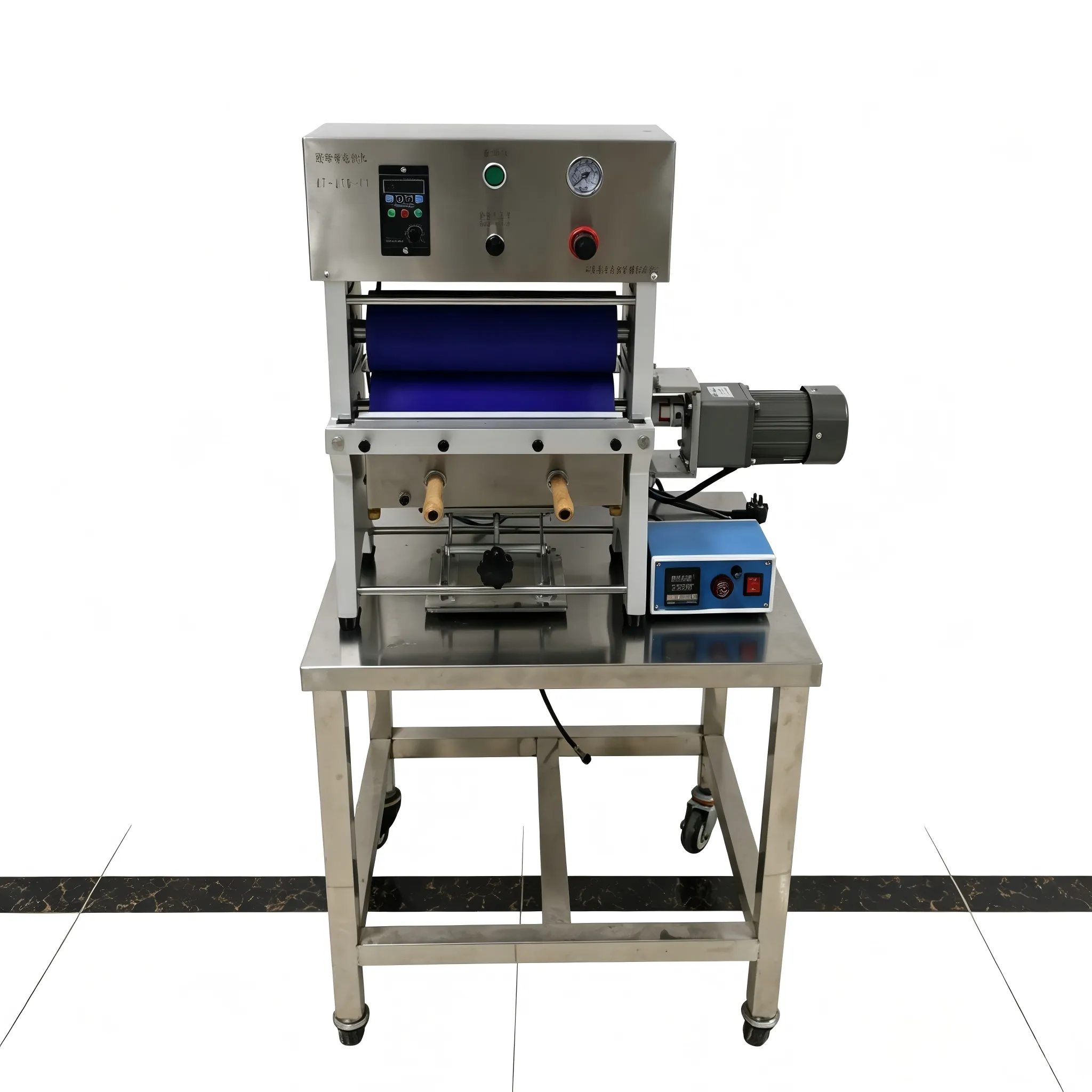

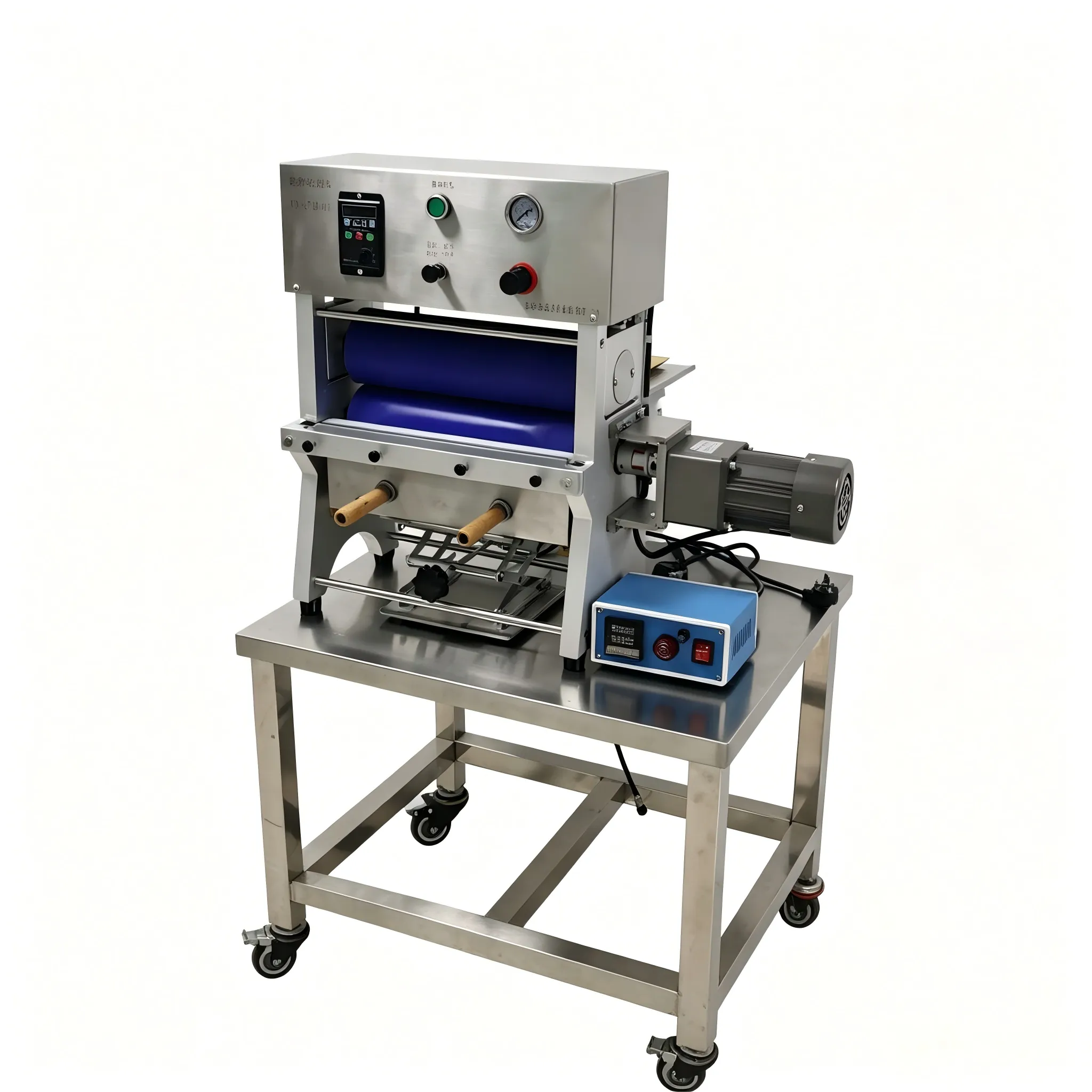

The film transfer sizer can be used for surface sizing, pigmented sizing, and coating, with a coating weight adjustable from 0.5-12 g/m² on single or both sides, suitable for various paper grades. The equipment first uses a metering rod to pre-meter a sizing liquid or coating at a controlled temperature onto an applicator roll, forming a uniform film, which is then transferred to the substrate fixed on a sizing plate in the nip area. As the paper passes through the nip of two counter-rotating sizing rolls, the film is transferred to the web, forming a uniform coating. Because the film is pre-metered, it is thin and even. This device features uniform coating, high repeatability of coating thickness, simple operation, and minimal material usage, making it suitable for lab demonstrations, small-scale sizing trials, and formulation research.

Key Features
Metering Rod Pre-Metering: The sizing liquid is first pre-metered onto the applicator roll by a metering rod to form a uniform thin film, which is then transferred to the paper. Coat weight is precisely controllable from 0.5-12 g/m², with a thin, even film.
Independent Double-Sided Adjustment: Supports single-sided or double-sided sizing (optional), with independent adjustment of each side's coat weight, meeting differential sizing requirements for different paper grades.
Precision Temperature Control: Electrically heated with digital display temperature setting from RT to 100°C, ensuring optimal sizing liquid temperature and stable viscosity.
Uniform Sizing Effect: Roll cover hardness is reasonably configured (upper roll 45, lower roll 70). Manual or automatic pressing ensures consistent cross-machine coat weight.
Easy Operation, Low Material Usage: Sizing plate 330×420 mm, effective width 300 mm, compact design suitable for lab use, saving coating material and easy to clean.

Technical Specifications

FAQ
1. Uneven cross-machine coat weight (one side thick, one thin)
Inconsistent metering rod/sizing roll gap at ends, rolls not parallel, or poor liquid recirculation. Recalibrate roll parallelism; adjust gaps evenly; clean recirculation channels/baffles.
2. Streaks, scratches, or tracks on paper
Metering rod scaled/worn, debris in rod holder, coating liquid containing particles, or dirty roll surface. Clean or replace metering rod; clean rod holder; filter coating liquid; polish roll surface.
3. Blisters, pinholes, pits in coating
Coating viscosity too high/low, improper temperature, air in tank, or wet/dirty web. Adjust viscosity (typically 15-30 mPa·s); control temperature; check defoaming/recirculation; clean web.
4. Low coat weight or no pickup
Insufficient metering rod pressure, low pump flow, blocked hose, low liquid level, or roll slippage. Tighten metering rod; increase pump flow; clear lines; replenish; check roll drive/belt.
5. Web sticking to roll, breaks, wrinkling
Glue too viscous, temperature too high, excessive roll pressure, unstable web tension, or misaligned guide rollers. Reduce viscosity/temperature; reduce roll pressure; stabilize tension; align guide rollers.
6. Unstable glue tank level, overflow/starvation
Unstable supply pump, blocked return line, faulty level sensor, or stuck valve. Check pump; clear return line; calibrate/replace sensor; clean valve.
7. Glue darkening, high impurities, rapid scaling
Aged glue, fiber/filler contamination, high water temperature, abnormal pH, or failed filtration. Change glue regularly; enhance filtration; control temperature; adjust pH; clean tank/lines.
8. Abnormal noise/vibration from sizing/backing rolls
Bearings lacking oil/damaged, roll imbalance, loose coupling, or loose foundation bolts. Lubricate/replace bearings; dynamic balance; tighten coupling; tighten anchor bolts.
9. Metering rod jumping, chattering, not holding
Worn rod holder, insufficient clamping cylinder pressure, dirty guide rail, or bent rod. Repair/replace holder; adjust cylinder pressure; clean rail; use qualified rod.
10. Roll surface corrosion, chrome loss, scratches
Glue pH too acidic/alkaline, containing chlorine/chemicals, or hard object abrasion. Control pH; reduce impurities; handle carefully; rechrome if necessary.
11. VFD alarm, unstable speed
Unstable voltage, motor overload, poor heat dissipation, or parameter drift. Check power; reduce load; clean heat sink; reset parameters.
12. Inaccurate temperature control, glue temperature won't rise
Heating element burnt out, controller malfunction, thermocouple poor contact, or loose wiring. Test heating element; calibrate controller; reconnect thermocouple; tighten terminals.
